Product Description

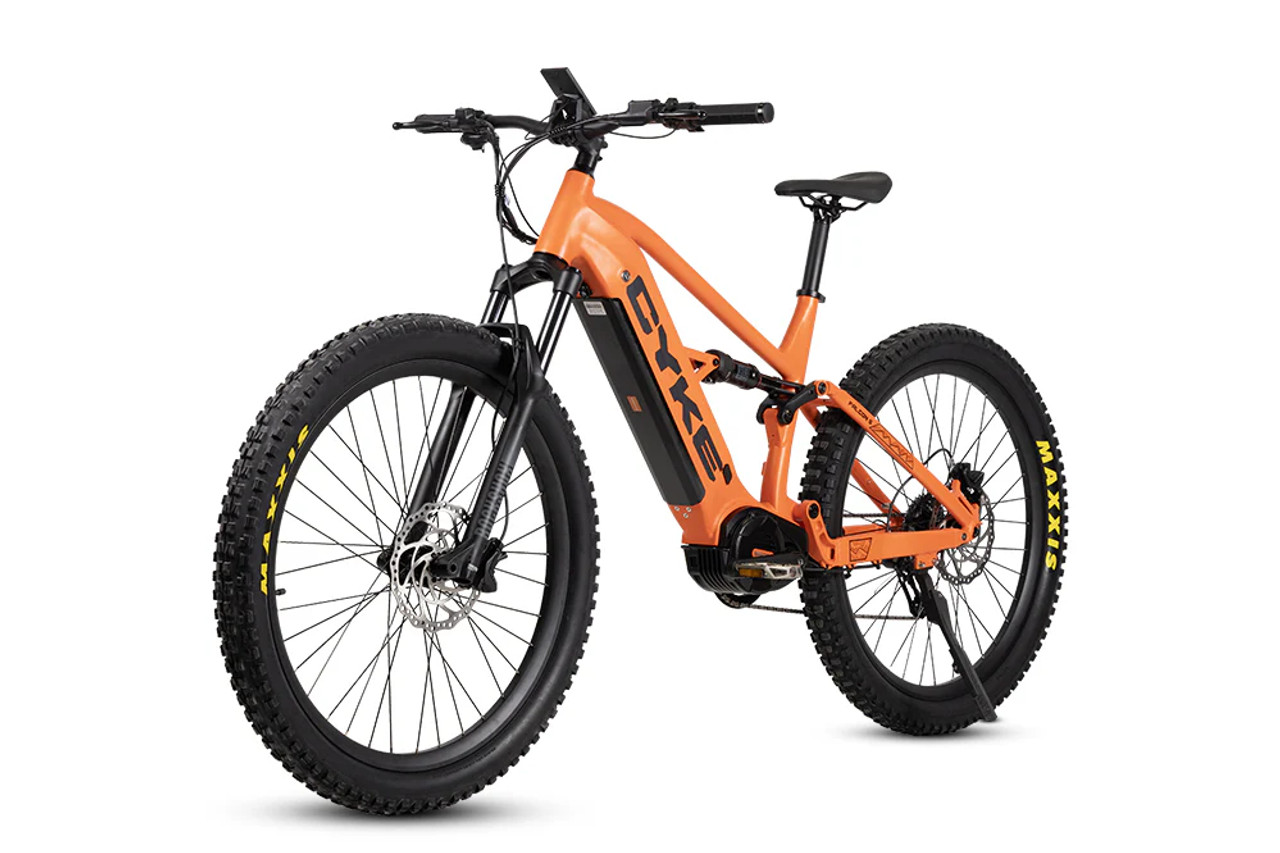

CYKE Falcon S Full-Suspension eMTB
Introducing the Falcon S, designed for dealers seeking to offer customers an all-terrain powerhouse with minimal effort required. Its soft-tail structure ensures a more comfortable ride, enhanced traction, and improved control for diverse off-road adventures.
The ROCKSHOX four-bar suspension system delivers superior shock absorption, while the BAFANG Mid-Drive motor, with up to 1000W of power and 160 Nm of torque, provides exceptional performance on challenging terrain.
The Falcon S is equipped with 29 x 3" MTB fat tires, ensuring effortless handling across various road conditions, making it a perfect choice for customers looking for power and versatility.
Specifications:
E-bike System:
- Battery: 48V/20Ah, 960Wh Lithium-ion battery with LG 21700 cells
- Motor: BAFANG Mid-drive, 1000W rated power, 1100W peak power, 160 Nm of torque, based on CAN6.3 protocol
- Range: 65 Miles (75kg load, flat road, Cassette set to the smallest gear, and PAS1 level of pedal assist). The actual range varies depending on the weather, load, road conditions, etc.
- Display: LCD display with Bluetooth, 4" TFT color screen, IP66
- Charger Input: 100-240V AC, 2.0A; Output: 54.6V DC, 3.0A.
- Charging Time: Approx. 6-8 hours
- Sensor: Torque sensor
- Max Speed: 28 MPH both in pedal-assist and throttle modes
- Pedal Assist Modes: 5 Levels
Frameset:
- Frame: Aluminum alloy, 17"/19" Size, 150mm rear travel
- Fork: ROCKSHOX FS RCNS RL, 150mm travel, pneumatic bumper, hydraulic lockout
- Shock: ROCKSHOX RS-DELUXE SELECT-C1, 190mmx45mm, iDebonAir+ air spring, Maxima Plush dynamic suspension lubricant
Wheels:
- Rim: Aluminum ring, 12G 36H AV, 634*41mm
- Front Tire: Maxxis Minion DHF, 29x3.0"
- Rear Tire Maxxis Minion DHR II, 29x3.0"
- Front Hub Aluminum alloy, disc brake, 12G 36H, ID15*110mm
- Rear Hub: Aluminum alloy, disc brake, 12G 36H, ID12*148mm
- Spoke: Black stainless, 12G, 267mm
Drivetrain:
- Shifter SRAM SL-X5, 9 speed, optimized for EXACT ACTUATION™
- Rear Derailleur SRAM RD-X5, 9 speed, EXACT ACTUATION™
- Cassette SRAM CS-PG-950, 9 speed
- Crank arm BAFANG 170mm length
- Chainring BAFANG MM G510, 40T
- Chain KMC E10S for e-bikes
- Pedal Aluminum alloy
Components
- Saddle VELO, boron steel, 160mm width
- Seat Post Aluminum alloy, Ø31.6*264mm
- Stem Bar bore: Ø31.8mm; Clamp I.D.: Ø28.6mm
- Handlebar Flat Bar, Aluminum Alloy Ø31.8mm, Width 780mm
- Grips VELO, trail grip
- Brakes TEKTRO HD-E730, 4-piston caliper, hydraulic disc, with
- power cut-off sensor
- Brake rotor TEKTRO HD-E730, 3T, 203x2mm
- Kickstand Side Kickstand
Weight:
- Weight Limit: 300 lbs
- Net Weight: 66 lbs
- Gross Weight: 100.3 lbs
Size:
- Bike Size: 82.84 x 30.9 x 45.79 in
- Box Dimension: 68.7 x 34.1 x 11 in
