Product Description
CYKE Falcon A Full-Suspension eMTB
Presenting the Falcon A: the ultimate solution for versatile off-road performance.
This model features a soft-tail design that enhances comfort, traction, and control on varied terrains. It comes equipped with front and rear shock absorbers with adjustable air pressure and a four-bar rear shock system for superior ride quality.
The engine delivers smooth power without transmission interference, ensuring a seamless riding experience.
The substantial weight of the frame increases stability, making the Falcon A a reliable choice for dealers looking to offer a high-performance, stable, and adaptable eBike to their customers.
Specifications
E-bike System
- Battery: 48V/15Ah, 720Wh Lithium-ion battery with LG 21700 cells
- Motor: BAFANG Mid-drive, 500W rated power, 750W peak power, 48V, 130 Nm of torque, based on CAN6.3 protocol
- Range: 75 Miles (75kg load, flat road, Cassette set to the smallest gear, and PAS1 level of pedal assist). The actual range varies depending on the weather, load, road conditions, etc.
- Display: LCD display with Bluetooth, 4" TFT color screen, IP66
- Charger Input: 100-240V AC, 2.0A; Output: 54.6V DC, 3.0A.
- Charging Time: Approx. 6-8 hours
- Sensor: Torque sensor
- Max Speed: 28 MPH both in pedal-assist and throttle modes
- Pedal Assist Modes: 5 Levels
Frameset

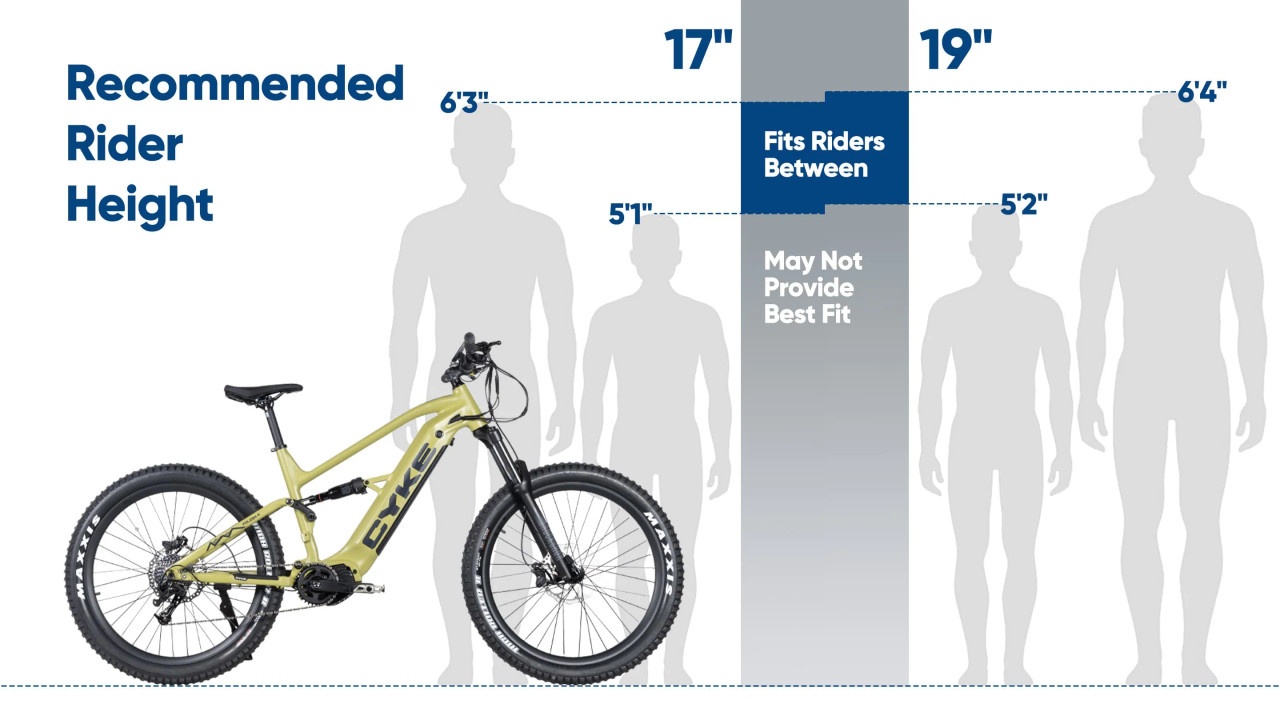

- Frame: Aluminum alloy, 17"/19"Size, 150mm rear travel
- Fork: ROCKSHOX FS RCNS RL, 150mm travel, pneumatic bumper, hydraulic lockout
- Shock: ROCKSHOX RS-DELUXE SELECT-C1, 190mmx45mm, iDebonAir+ air spring, Maxima Plush dynamic suspension lubricant
Wheels
- Rim: Aluminum ring, 12G 36H AV, 596*41mm
- Front Tire: Maxxis HIGH ROLLER II, 27.5x3.0"
- Rear Tire: Maxxis HIGH ROLLER II, 27.5x3.0"
- Front Hub: Aluminum alloy, disc brake, 12G 36H, ID15x150mm
- Rear Hub: Aluminum alloy, disc brake, 12G 36H, ID12*197mm
- Spoke: Black stainless, 12G, 247mm
Drivetrain
- Shifter: SRAM SL-X5, 9 speed, optimized for EXACT ACTUATION™
- Rear Derailleur: SRAM RD-X5, 9 speed, EXACT ACTUATION™
- Cassette: SRAM CS-PG-950, 9 speed
- Crank arm: BAFANG 170mm length
- Chainring: BAFANG MM G520, 34T
- Chain: KMC E10S for e-bikes
- Pedal: Aluminum alloy
Components
- Saddle: VELO, boron steel, 160mm width
- Seat Post: Aluminum alloy, Ø31.6*264mm
- Stem Bar bore: Ø31.8mm; Clamp I.D.: Ø28.6mm
- Handlebar: Flat Bar, Aluminum Alloy Ø31.8mm, Width 780mm
- Grips: VELO, trail grip
- Brakes: TEKTRO HD-E730, 4-piston caliper, hydraulic disc, with power cut-off sensor
- Brake rotor: TEKTRO HD-E730, 3T, 203x2mm
- Kickstand Side: Kickstand
Weight
- Weight Limit: 300 lbs
- Net Weight: 55 lbs
- Gross Weight: 86 lbs
Size
- Bike Size: 82.84 x 30.9 x 45.79 in
- Box Dimension: 66.54 x 33.9 x 11 in
