Product Description

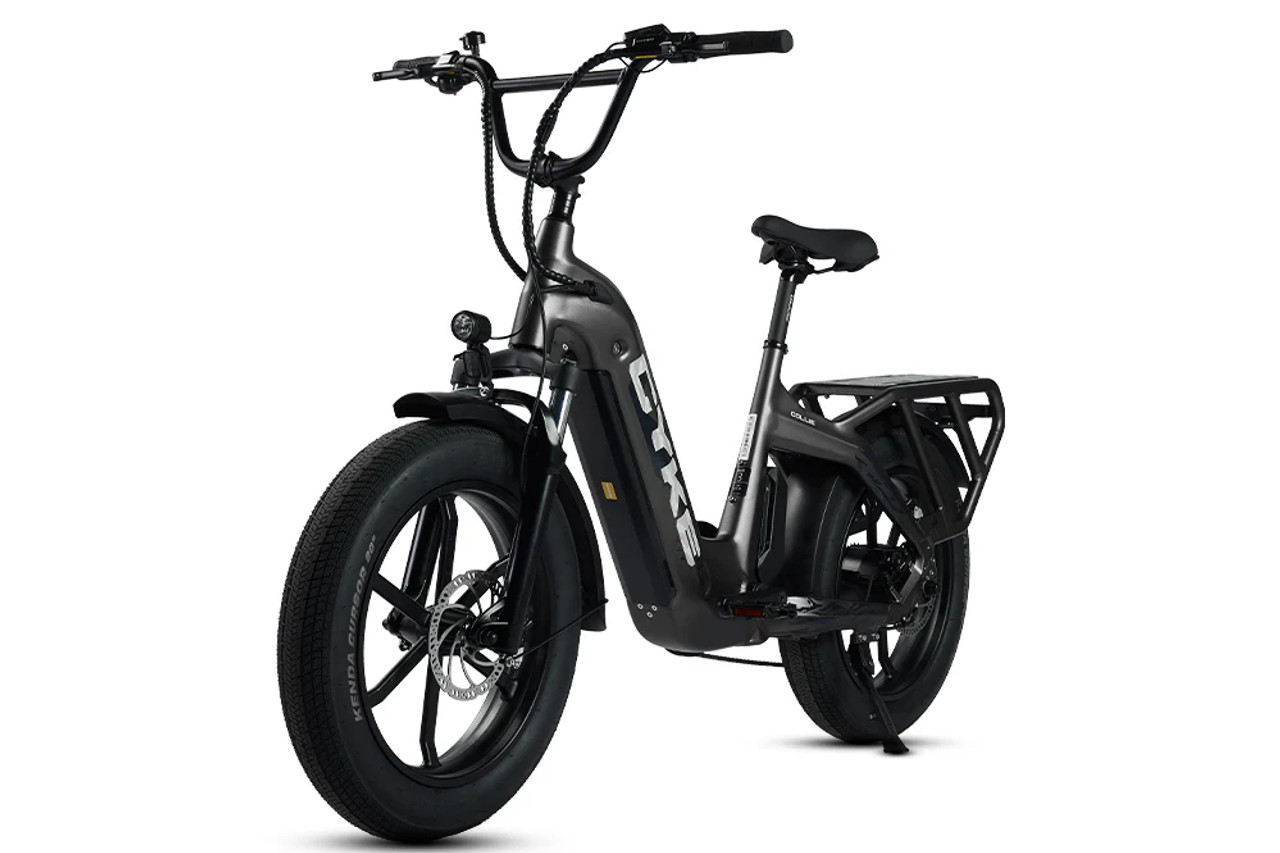

CYKE Collie Cargo eBike
The Collie Cargo eBike from CYKE's Family Series is your go-to solution for urban transport, designed for heavy-duty use. With a reinforced cargo rack and a robust 450 lbs load capacity, it’s perfect for carrying gear, groceries, or even a passenger. Powered by a 750W BAFANG hub motor and a 960Wh battery, the Collie offers an impressive range of up to 80 miles on a single charge. Its durable aluminum alloy frame ensures stability, while its sleek design, available in space gray or flame orange, blends practicality with modern style for versatile city riding.
Features:
- Reinforced Cargo Rack: Specially designed for cargo transportation, commuting, and urban exploration.
- High Load Capacity: Supports up to 450 lbs, feel free to carry a heavy backpack, your pet or your child with you.
- Extended Range: Travel up to 100 miles on a single charge.
- Powerful Motor: Equipped with a 750W BAFANG SUTTO hub motor and a high-capacity 960Wh battery.
- Sturdy Build: Features a durable 6061 aluminum alloy frame for enhanced stability.
- Sleek Design: Available in space gray and flame orange, combining style with functionality.
Specifications:
E-bike System
- Battery: 48V/20Ah, 960Wh Lithium-ion battery with LG cells
- Motor: BAFANG SUTTO 750W rear hub motor, 85 Nm of torque
- Range: Up to 100 miles (with a 75kg load in ECO mode). The actual range varies depending on the weather, load, road conditions, etc.
- Display: 2.0" color matrix HMI display
- Charger Input: 100-240V AC, 2.0A; Output: 54.6V DC, 3.0A.
- Charging Time Approx. 6-7 hours
- Pedal Sensor Cadence sensor
- Max Speed 28 MPH both in pedal-assist and throttle modes
- Throttle Thumb throttle
- Pedal Assist Modes: 5 Levels
Frameset
- Frame Aluminum alloy
- RST front suspension fork, 60mm travel
Wheels
- Rim: Aluminum ring, 12G 36H AV, 422*85mm
- Tire: KENDA 20x4.0" fat tires
- Front Hub: 12G 36H
Drivetrain
- Shifter: Shimano 7-speed
- Crank Arm: 52ED, 170mm
Components
- Saddle: Black nubuck leather
- Seat Post Forged Alloy, Ø30.4*350mm
- Stem Bar bore: Ø31.8mm; Clamp I.D.: Ø28.6mm
- Handlebar Cruiser Bars, Aluminum Alloy Ø31.8mm, Width 780mm
- Grips: 140mm black grips
- Brakes: TEKTRO hydraulic disc brake
- Brake Rotor: 180mm brake rotor
- Front Light: 40 LUX headlight
- Rear Light: Brake light
- Rear Rack: YES, integrated with the frame
- Fenders: Front & rear fenders, Engineering Plastic
- Kickstand Side Kickstand
Weight
- Weight Limit 450 lbs
- Net Weight 92.2 lbs
- Gross Weight 120.2 lbs
Size
- Bike Size 71.63 x 28.74 x 45.14 in
- Box Dimension 62.0 x 11.3 x 42.8 in
