Product Description

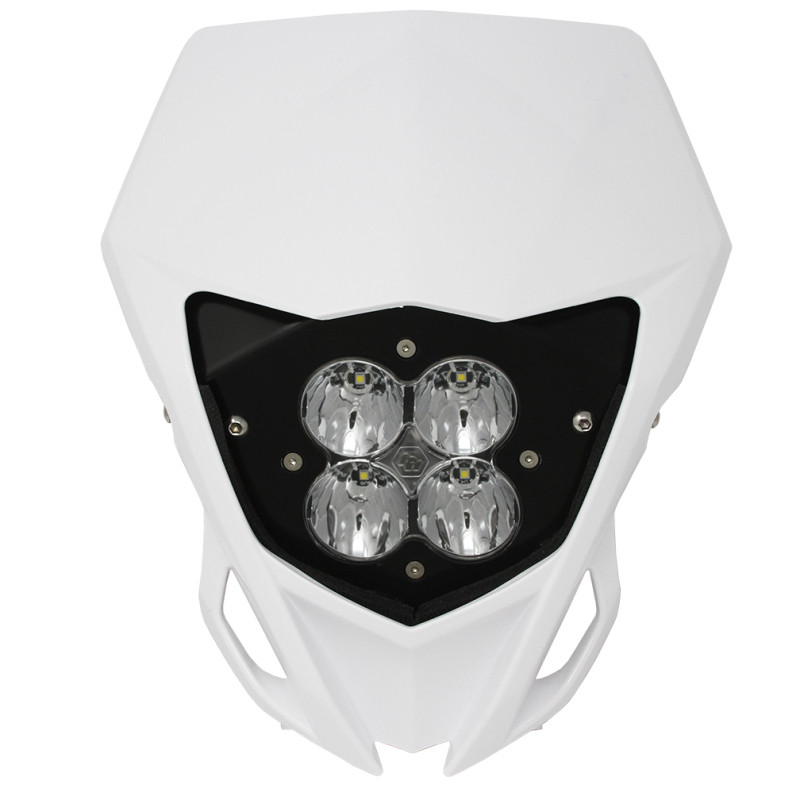

Baja Designs 16-18 XL80 Yamaha YZ250FX YZ450FX w/ Headlight Shell
The Baja Designs XL80 Yamaha YZ250FX/YZ450FX Kit was designed specifically for aggressive night-time riding over any terrain by combining amazing distance projection, wide peripheral spread, and a smooth light pattern. The XL80 offers exceptional lighting at 9,022 raw lumens to light up the trails at night. Perfect for racers and enthusiasts that need a vast amount of light at high speeds and also for slower technical riding. This kit is bike specific to the Yamaha YZ250FX/450FX models with a simple plug and play harness making for an easy installation. An industry first 30-Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
XL 80 Specification (Per Light):
- Includes pre-installed Trail lens for 1st-4th gear technical trail riding
- Improve visibility through vertical transitions and tight turns in technical terrain
- Lumens: 9,022
- Wattage/Amps: 75.9W/ 5.5A
The Baja Designs Advantage:
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Standards & Compliance:
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Specifications"
| Wiring Harness Included | No |
| Wattage (W) | 75.900 |
| Universal or Specific | Universal |
| Average Rated Life (hr.) | 49,930 |
| Amperage Rating (A) | 5.500 |
| Beam Pattern | Spot |
| Bezel Material | Powder Coated Cast Aluminum |
| Description | Driving/Combo; Clear |
| Product Type | XL80 LED Light Pod |
| Overvoltage Protection | Built-In |
| Mounting Hardware Material | Stainless Steel |
| Mounting Hardware Included | Yes |
| Lighting Type | Forward Projecting |
| Lighting Technology | Cree LED |
| Lighting Quantity | 4 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Light Quantity | 1 |
| Lens Material | Hardcoated Polycarbonate |
| Lens Color | Clear |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Housing Color | Black |
| Brightness (Lumens) | 9022 |
Dimensions
| Weight (lbs.) | 2.450 |
| Length (in.) | 4.430 |
| Height (in.) | 4.430 |
| Depth (in.) | 3.650 |
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2016-2018 | Yamaha | YZ250FX | Base |
| 2016-2018 | Yamaha | YZ450FX | Base |
